Description

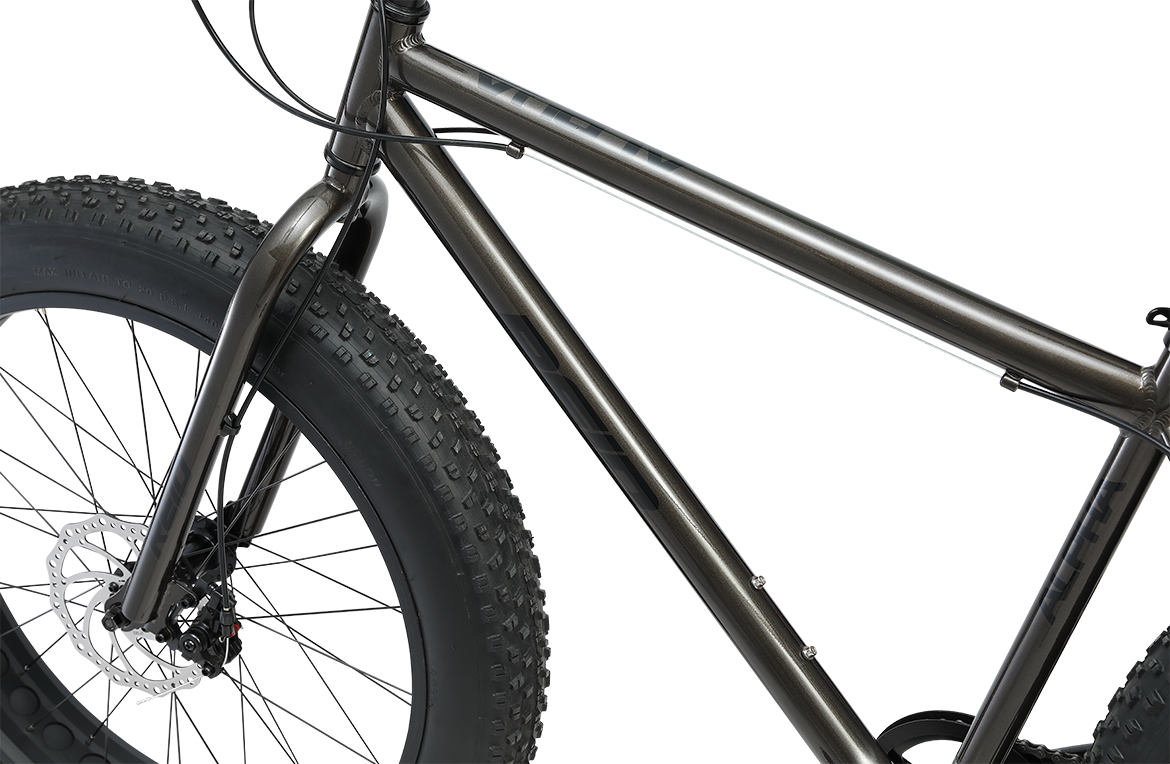

Stay in charge with the Alpha Bike. Huge 4” tyres and all-conditions disc brakes built on an aggressive alloy frame to conquer all types of terrain.

Get the full fat bike experience with the Reid Alpha fat bike, a lightweight 6061 alloy frame with a rigid steel A-head fork, running 26×4.0″ tyres that leave a commanding footprint. The Reid Alpha fat bike will give you unbeatable traction in the sketchiest conditions.

View the Fat Bikes & 27 range | Check us out on Instagram and TikTok

Find a retailer

Specifications

frame

6061 alloy

fork

Steel rigid fork

Shifters

Shimano SL-M315 Trigger Shifter

Front derailleur

n/a

Rear derailleur

Shimano TY300

Freewheel / cassette

Shimano 7-speed freewheel (14-28T)

Chainset

Reid 36T alloy single chainset with alloy bash guard

Chain

KMC Z8.3

Bottom bracket

VP sealed bearing

Brakes

JAKS mechanical discs with 160mm rotors

Brake Levers

Promax alloy

wheelset rim

Reid alloy fat bike (drilled for weight reduction)

Hub

Reid fat bike disc hubs

Tyres

Reid 26 x 4.0″

Handlebars

Reid 31.8mm alloy riser bars

Stem

1-1/8″ threadless alloy, oversize

Grips

Ergonomic rubber

Saddle

Reid MTB

Seatpost

Reid alloy 27.2mm micro adjust

Pedals

PVC platform, 9/16″ steel axle

* We reserve the right to make changes to the product specifications and information at any time without notice, including with respect to equipment, specifications, models, colours, and materials. This is especially poignant at the moment where Covid-19 has had a significant impact on production and we need to make changes to ensure we have products in the market.

Geometries

Measurements 38CM 43CM 48CM 53CM
Top Tube Length 590 615 630 645
Seat Tube Length 376 427 478 528
Head Tube Length 111 121 121 131
Seat Tube Angle 65 65 65 65
Head Tube Angle 70 70 70 70
RC Length 470 470 470 470
BB Drop 68 68 68 68
Fork Rake / Offset 47 47 47 47
Front Center 658 683 698 714
Wheelbase 1119 1145 1160 1175
Fork Length, Full 446 446 446 446
Fat Bike base bike BLANK - Reid ® - Alpha Bike base bike TOP TUBE LENGTH - Reid ® - Alpha Bike base bike SEAT TUBE LENGTH - Reid ® - Alpha Bike base bike HEAD TUBE LENGTH - Reid ® - Alpha Bike base bike SEAT TUBE ANGLE - Reid ® - Alpha Bike base bike HEAD TUBE ANGLE - Reid ® - Alpha Bike base bike RC LENGTH 2 - Reid ® - Alpha Bike base bike BB DROP - Reid ® - Alpha Bike base bike FORK RAKE OFFSET - Reid ® - Alpha Bike base bike FRONT CENTER - Reid ® - Alpha Bike base bike WHEELBASE - Reid ® - Alpha Bike base bike FORK LENGTH FULL - Reid ® - Alpha Bike

* Length measurements are in millimetres, unless otherwise stated.

Adult Fat Bike Size Guide

This guide gives a rough estimate of our suggestion for the size of bike you should consider ordering based upon rider height. For a more accurate estimate, we suggest contacting your local Reid distributor.

Meters & Centimeters

Feet & Inches

Rider Height

5'2" - 5'5"

We Suggest:

38 CM
Small

Rider Height

5'5" - 5'8"

We Suggest:

43 CM
Medium

Rider Height

5'8" - 6'1"

We Suggest:

48 CM
Large

Rider Height

6'1" - 6'4"

We Suggest:

53 CM
X Large
