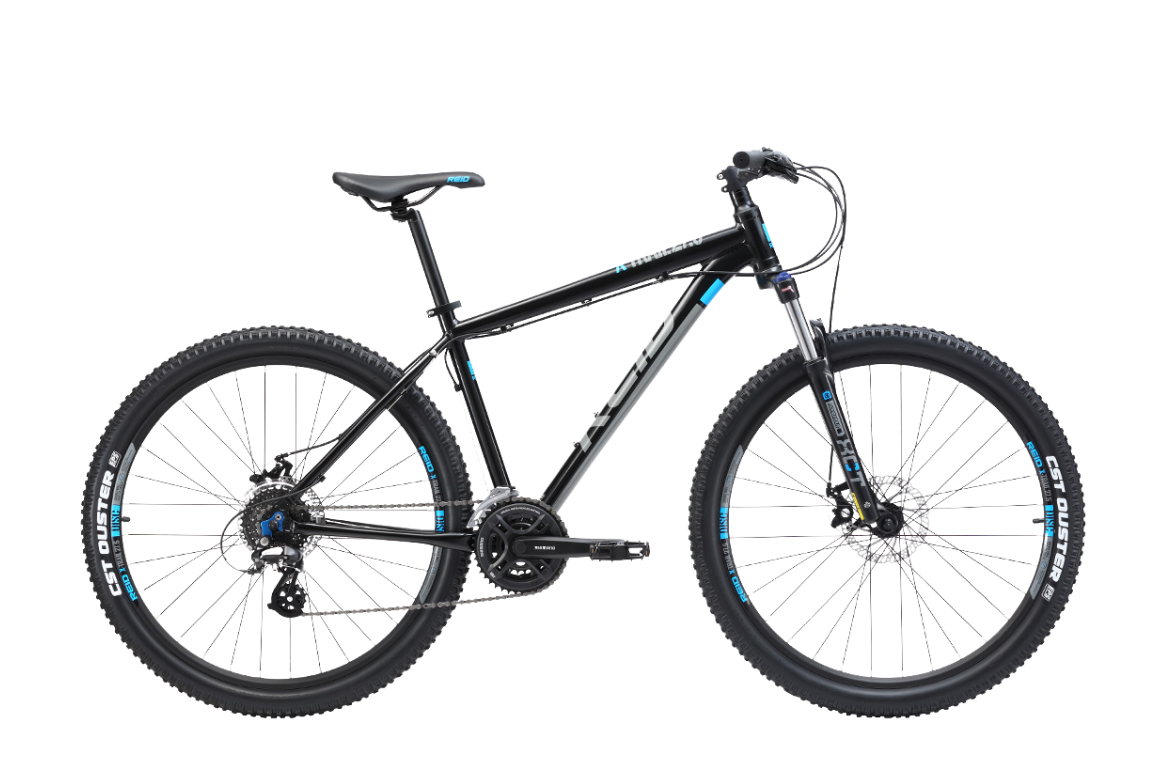

X-Trail – 27.5″ MTB

The REID X-Trail 27.5 features a 6061 T6 aluminium frame with trail inspired geometry, to ensure confidence on and off road.

Product code : BM10017REI
Size :38cm Small, 43cm Medium, 48cm Large, 53cm X Large
Frame 6061 aluminium alloy
ForkSuntour XCT-HLO 100mm travel with lockout and preload adjustment
ShiftersShimano EF51 24-speed
Front derailleurShimano TY700
Rear derailleurShimano Altus
Freewheel / cassetteShimano HG31 8-speed cassette
ChainsetShimano alloy triple crankset
ChainKMC Z7
Bottom bracketVP sealed bearing
BrakesTektro M280 mechanical disc brakes
Brake leversShimano EF51
Wheelset rimREID double wall disc specific
HubQuando alloy quick release, disc specific
TyresCST 27.5 x 2.25" MTB
HandlebarsREID oversize alloy
StemREID MTB 1-1/8" threadless alloy, oversize
GripsMTB rubber
SeatpostREID alloy 31.6mm micro adjust
PedalsVP 565 alloy

The REID X Trail 27.5 features a 6061 T6 aluminium frame with trail inspired geometry, to ensure confidence on and off road. The X Trail is at home on singletrack trails and forest roots, and punches well above its weight, using features and designs featured on some of our higher level models such as the Terra Elite. To ensure a smooth ride over tough obstacles, the X Trail comes with the latest Suntour XCT fork with a new improved hydraulic lock out, and adjustable pre load. The extra wide double butted alloy bars help to keep control through the corners and berms, while powerful Tektro disc brakes help to shed speed fast when needed.

The wheelset is made up of a durable 27.5 disc specific rim, and proven alloy hubs. Grip comes courtesy of CST 2.25” profile tyres with added puncture protection properties. To help you climb we have equipped the X Trail with a Shimano Altus 24 speed groupset, which features an 11-32T rear cassette and 24/34/42T chainset for a huge gear range.

Key Features

  • 27.5” wheel trail inspired geometry MTB
  • Suntour XCT suspension forks with 100mm travel and hydraulic lock out
  • Shimano Altus 24 speed gearing
  • Powerful Tektro mechanical disc brakes
  • Lifetime frame warranty and two year suspension fork warranty for your peace of mind, as well as a one year warranty on all other non-consumable parts

* Specs subject to change at any given point
