Granite 1.0 Bike

Hot Read Hot read Apr 8

Granite 1.0 Bike

Lose Yourself

IMG 0063 - Reid ® - Granite 1.0 Bike
image pin - Reid ® - Granite 1.0 Bike image pin hover - Reid ® - Granite 1.0 Bike
image pin - Reid ® - Granite 1.0 Bike image pin hover - Reid ® - Granite 1.0 Bike
image pin - Reid ® - Granite 1.0 Bike image pin hover - Reid ® - Granite 1.0 Bike
image pin - Reid ® - Granite 1.0 Bike image pin hover - Reid ® - Granite 1.0 Bike
image pin - Reid ® - Granite 1.0 Bike image pin hover - Reid ® - Granite 1.0 Bike
Separator

£0.00

Clear

Product Code:

120099

Recommended Price:

Contact your local retailer

Size:

49cm Small

52cm Medium

55cm Large

58cm X Large

Description

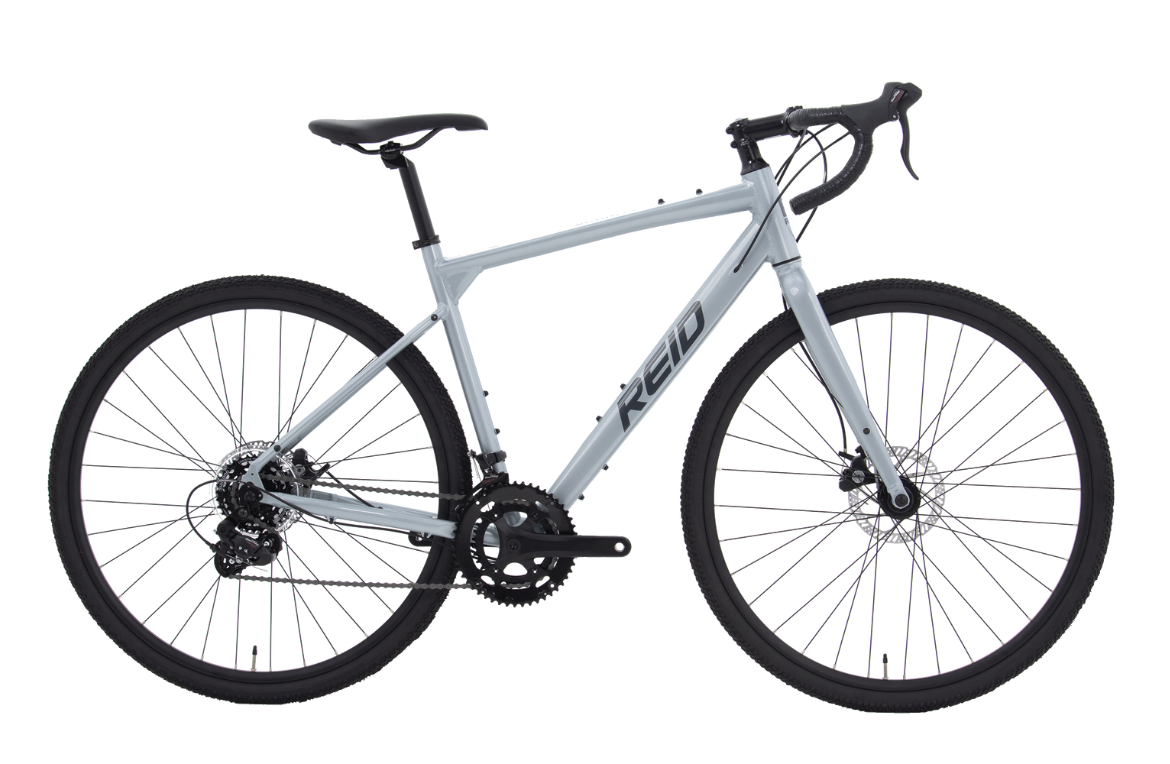

Built for weekend adventures and the dirtiest of commutes, get outdoors and explore on The Granite 1.0. Featuring a lightweight 6061 alloy gravel-grinder frame, compact Shimano gearing and disc brakes for performance in all conditions.

Find your way to work each day and then get lost on the weekend with the Reid Granite 1.0 gravel bike. Simply put, Gravel-grinders (AKA All-Road, Adventure Road or Dirt-Road-Racers) are like a CX (Cyclocross) bike built for Endurance riding.

A lightweight 6061 alloy frame with front/rear rack and mudguard mounts and extra clearance for wide tyres. Getting to work or loading up for a weekend of bike trekking? The Reid Granite 1.0 gravel bike has you covered. The features that make these bikes perfect for dirty distance racing across varied terrain also make them perfect for all-conditions commuting.

View the full Gravel and Cyclocross range | Check us out on Instagram and TikTok

Find a retailer

Specifications

frame

Double butted alloy with dropped chainstays, luggage mounts and enhanced clearance

fork

Reid alloy with front rack mounts and disc mounts

Shifters

Shimano A070 STI

Front derailleur

Shimano A070

Rear derailleur

Shimano A070

Freewheel / cassette

Shimano HG200 7-speed cassette (12-32T)

Chainset

Prowheel alloy 50/34T

Chain

KMC Z50

Bottom bracket

VP sealed bearing

Brakes

Tektro C400 mechanical disc

Brake Levers

Shimano A070 STI

wheelset rim

Alex MD17 alloy

Hub

Quando alloy QR

Tyres

Kenda Kwick Trax 700 x 32C

Handlebars

Reid compact alloy race bar

Stem

1-1/8″ alloy, oversize

Grips

Reid CX race tape

Saddle

Reid CX race

Seatpost

Reid alloy 27.2mm micro adjust

Pedals

VP 990A

* We reserve the right to make changes to the product specifications and information at any time without notice, including with respect to equipment, specifications, models, colours, and materials. This is especially poignant at the moment where Covid-19 has had a significant impact on production and we need to make changes to ensure we have products in the market.

Geometries

Measurements 49CM 52CM 55CM 58CM
Top Tube Length 529 545 561 578
Seat Tube Length 490 520 550 580
Head Tube Length 143 160 178 195
Seat Tube Angle 74 73.5 73 72.5
Head Tube Angle 70 70 71 71
RC Length 430 430 430 430
BB Drop 70 70 70 70
Fork Rake / Offset 45 45 45 45
Front Center 602 608 614 619
Wheelbase 1023 1028 1034 1039
Fork Length, Full 390 390 390 390
Allroad base bike BLANK - Reid ® - Granite 1.0 Bike base bike TOP TUBE LENGTH 1 - Reid ® - Granite 1.0 Bike base bike SEAT TUBE LENGTH 1 - Reid ® - Granite 1.0 Bike base bike HEAD TUBE LENGTH 1 - Reid ® - Granite 1.0 Bike base bike SEAT TUBE ANGLE 1 - Reid ® - Granite 1.0 Bike base bike HEAD TUBE ANGLE 1 - Reid ® - Granite 1.0 Bike base bike RC LENGTH 1 - Reid ® - Granite 1.0 Bike base bike BB DROP 1 - Reid ® - Granite 1.0 Bike base bike FORK RAKE OFFSET 1 - Reid ® - Granite 1.0 Bike base bike FRONT CENTER 1 - Reid ® - Granite 1.0 Bike base bike WHEELBASE 1 - Reid ® - Granite 1.0 Bike base bike FORK LENGTH FULL 1 - Reid ® - Granite 1.0 Bike

* Length measurements are in millimetres, unless otherwise stated.

All Road and Cyclocross Size Guide

This guide gives a rough estimate of our suggestion for the size of bike you should consider ordering based upon rider height. For a more accurate estimate, we suggest contacting your local Reid distributor.

Meters & Centimeters

Feet & Inches

Rider Height

5'2" - 5'5"

We Suggest:

49 CM
Small

Rider Height

5'5" - 5'8"

We Suggest:

52 CM
Medium

Rider Height

5'8" - 6'1"

We Suggest:

55 CM
Large
