Tracker 2 eBike MY24

Robust Ride

Separator

Tracker 2 eBike MY24

Product Code:

1246086543

Recommended Price:

This product is not available in your country

Size:

38cm Small

43cm Medium

48cm Large

53cm X Large

Description

The Tracker is your ultimate adventure companion, built for taking you places you have never been before.


Power and control are at the heart of everything the Tracker does. Equipped with a 750w motor and 16.75AH battery the power is always there. Giving you control is a combination of a torque sensing bottom bracket and thumb throttle. The torque sensor really helps to give a natural feel to the ride and when the legs are tired the throttle gives all the go with none of the effort.


Tackling treacherous terrain is the Trackers home turf. 4.0” wide tyres give you the grip you need on soft and rocky terrain transferring all the motors power where it’s needed. Combined with the suspension fork they make for a super smooth and controlled ride.


Tektro HD-M275 hydraulic disc brakes provide impressive stopping power with plenty of modulation, making tricky descents and technical sections feel relaxed. Wide range Shimano 9 speed Cues rapid fire shifting makes changing gears a breeze keeping your concentration on the trail.


Finished with front and rear mudguards, rear rack, and kickstand, the tracker really is the complete adventure eBike. Charge it up and see where it takes you!

Find a retailer

Specifications

frame

6061 aluminium with intergrated battery

fork

Uding D9

Shifters

Shimano SL-U4010

Rear derailleur

Shimano RD-U4000

Freewheel / cassette

Shimano LG400 9 speed 11-46T

Chainset

38T 170mm allopy with torque sensor

Chain

KMC Z 8.1 9 speed

Bottom bracket

Sealed bearing

Brakes

Tektro HD-M275 hydraulic disc brakes

Brake Levers

Tektro HD-M275

wheelset rim

Reid double wall alloy 36H fat bike

Hub

Reid alloy 36H 6 bolt disc

Tyres

kenda Juggernaut 26x4.0"

Handlebars

Reid alloy riser bar 720mm

Stem

Reid alloy 50mm

Grips

Reid MTB

Saddle

Reid MTB

Seatpost

Reid alloy 30.9 mm, 350mm micro adjust

Pedals

Reid alloy platform

Battery

48V 17ah 816WH

Motor

Jiabo 750w 48V

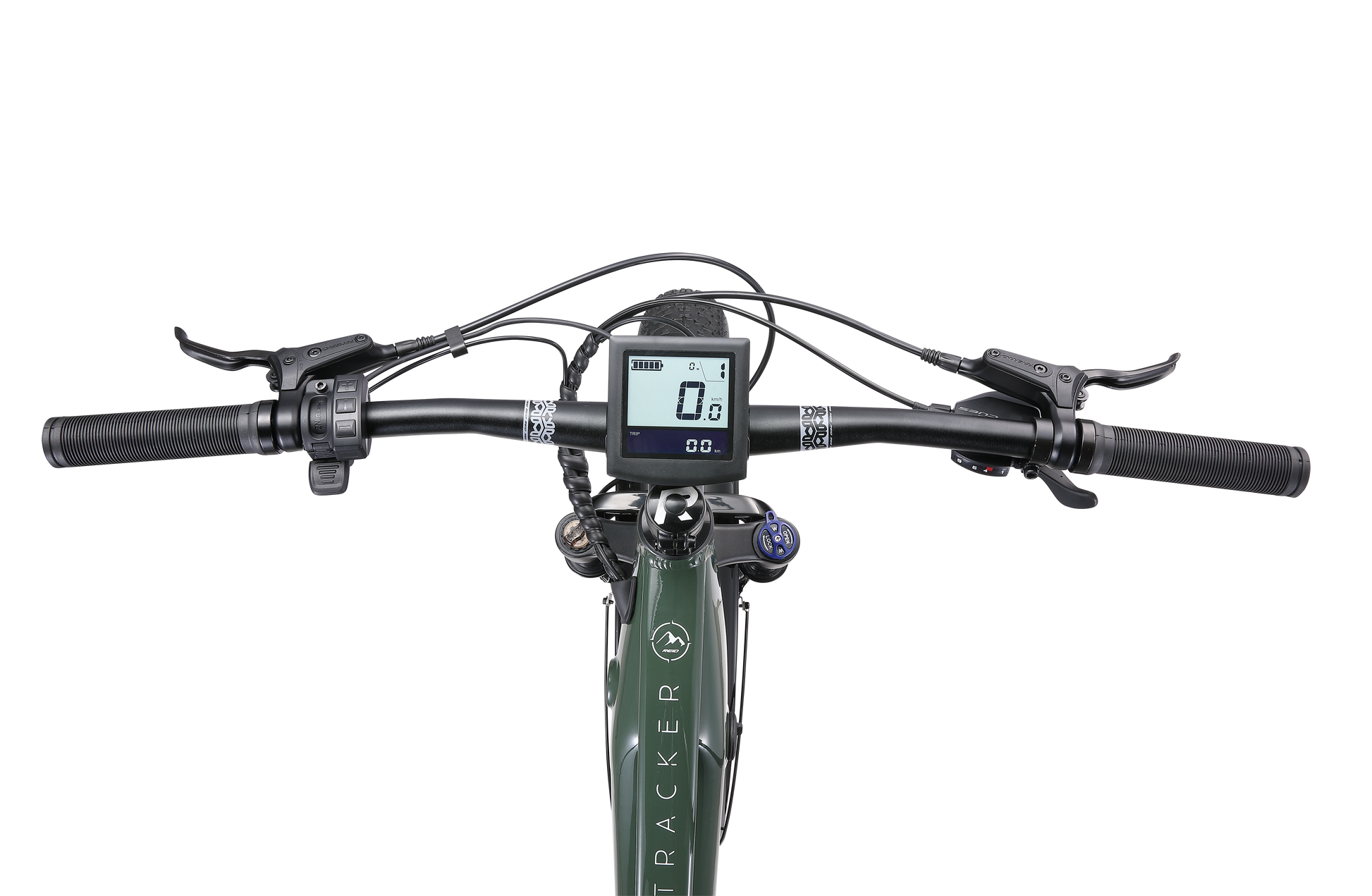

Display

KD51C LCD

* We reserve the right to make changes to the product specifications and information at any time without notice, including with respect to equipment, specifications, models, colours, and materials. This is especially poignant at the moment where Covid-19 has had a significant impact on production and we need to make changes to ensure we have products in the market.

Geometries

Measurements 43CM 48CM 53CM
Top Tube Length 595 605 615
Seat Tube Length 430 480 530
Head Tube Length 155 155 155
Seat Tube Angle 73 73 73
Head Tube Angle 69 69 69
RC Length 460 460 460
BB Drop 60 60 60
Fork Rake / Offset 46 46 46
Wheelbase 1120 1139 1140
Fork Length, Full 510 510 510

* Length measurements are in millimetres, unless otherwise stated.

Tracker 1 Size Guide

This guide gives a rough estimate of our suggestion for the size of bike you should consider ordering based upon rider height. For a more accurate estimate, we suggest contacting your local Reid distributor.

Meters & Centimeters

Feet & Inches

Rider Height

5'5" - 5'8"

We Suggest:

38 CM
Small

Rider Height

5'8" - 5'10"

We Suggest:

43 CM
Medium

Rider Height

5'10" - 6'1"

We Suggest:

48 CM
Large

Rider Height

6'1" - 6'4"

We Suggest:

53 CM
X Large
